Drawers Slides

Carriles de cajón metálicos para almacenamiento extraíble.

Hettich Quadro V6 Drawer Slide

Mounting Type:
Undermount Soft Close, Soft Close+Push to Open
Adjustment Dimensions:
2D and 4D
Available Sizes:
9" | 12" | 15" | 18" | 21" | 24"
Compatible Side Thickness:
From 1/2” (12 mm) to 5/8” (16 mm)
Brand:
HETTICH
Origin:
Germany

Dos piezas de hardware de color gris, similares con perillas y mecanismos de ajuste, parecen ser partes de un sistema de montaje o soporte.

Front fixing clip for Hettich Quadro V6

Application:
Quadro 4D V6
ASecure, tool-less connection of Quadro 4D V6 and wooden drawer
Tool-less height adjustment up to + 2 mm
Side adjustment up to +/- 1.5 mm
APlastic, grey

Dos componentes de sommeliers para lavavajillas, en tonos grises y blancos, con perillas y mecanismos ajustables.

Front fixing clip for Hettich Quadro V6

Application:
Quadro 2D V6
Side adjustment up to +/- 2 mm
For 16 mm (5/8") drawer material thickness
With + 3 mm toolless height adjustment
APlastic, grey

Partes desmontadas de un dispositivo electrónico, incluyendo placas, conectores y pequeños componentes.

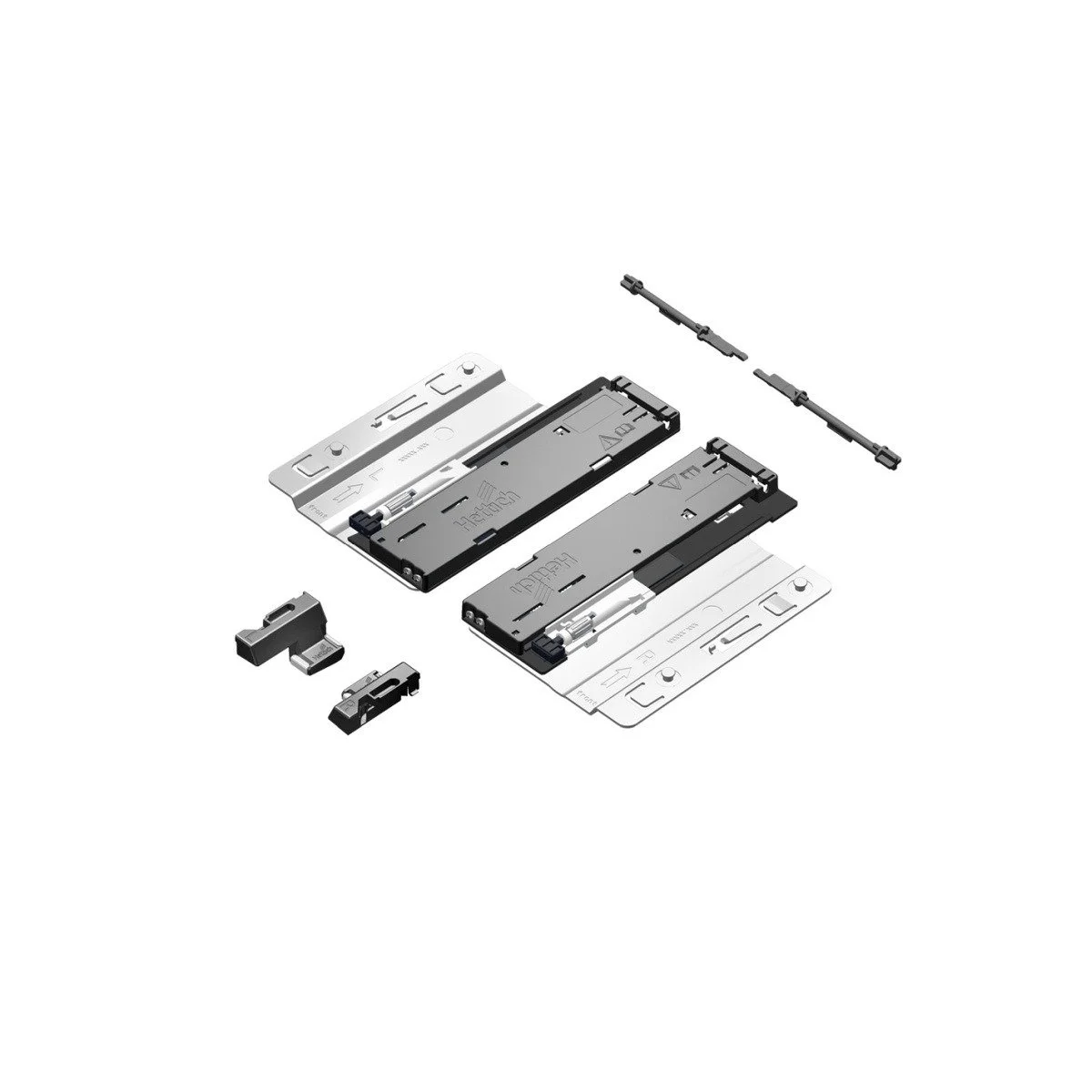

Push to open Silent for HETTICH Quadro 4D and 2D V6 with Silent System

Opening system for optionally upgrading Quadro 2D & 4D V6 with Silent Sustem
For all nominal lengths; from 275 mm internal cabinet body width
2D and 4D with Silent System
Minimal drawer front gap of 2.5 mm
Can be clipped on without tools
Drawers can still be pulled open / guided closed
Optional synchronisation for reliable activation
For drawers with a total weight of 8 to 20 kg
